- Shows you what is in the water: water depth, approximate fish location (suits for all sorts of fish), fish size(small/medium/big), short & tall weeds, sand & rocks on bottom. Suitable for fishing from a kayak, off the dock, and ice fishing. You can use the fish finder on moving kayak with slowly speed below 5mph (make sure the bottom of the transducer is horizontal).
- Very portable that you can take it anywhere: It comes with neck strap that allow you to wear it around neck when you are busy on the kayak. And you can easily store the fish finder in your tackle box. The fishfinder is powered by 4 AAA batteries. It lasts 4-5 hours with new batteries in continuous use. It can be used in fresh water as well as salt/sea water.
- Accurate Depth Reading: The fish finder use sonar to detect water depth and fish location. Sonar Frequency is 200 kHZ. Detectable area is 45 degrees beam angle under the sonar transducer. Detectable depth range is from 3ft/1m to 328ft/100m below the sonar transducer.
- Easy to Use: Toss the transducer into water and turn on the display unit, it will show you the water depth and approximate fish depth if fish schools passing by. It has 5 user selectable sensitivity; battery save mode; backlight mode ; fish alarm; unit of measure. Setting can be saved when turned off.
- Warranty and Brand Support: The Venterior Portable Fish Finder is covered by a 2-year Warranty. Any issue of the fish finder after purchase, please don't hesitate to contact our brand support (warranty card comes with product in package), we will response within 24 hours every day online.
Specification :
1. Measure Units: Meters / Feet
2. Display: LCD
3. Backlighting: LED
4. 4.6cm diameter Round transducer sensor
5. Depth Range : Max: 100m (328ft) ; Min: 0.9m (3ft)
6. Sensor Beam Angle: 45 degrees
7. Display the nature or circumstance of bottom of Sea (i.e. grass, rock and sand)
8. Operating Temperature is from -10C to 45C (14F to 113F)
9. Uses 4 x AAA batteries (not included)

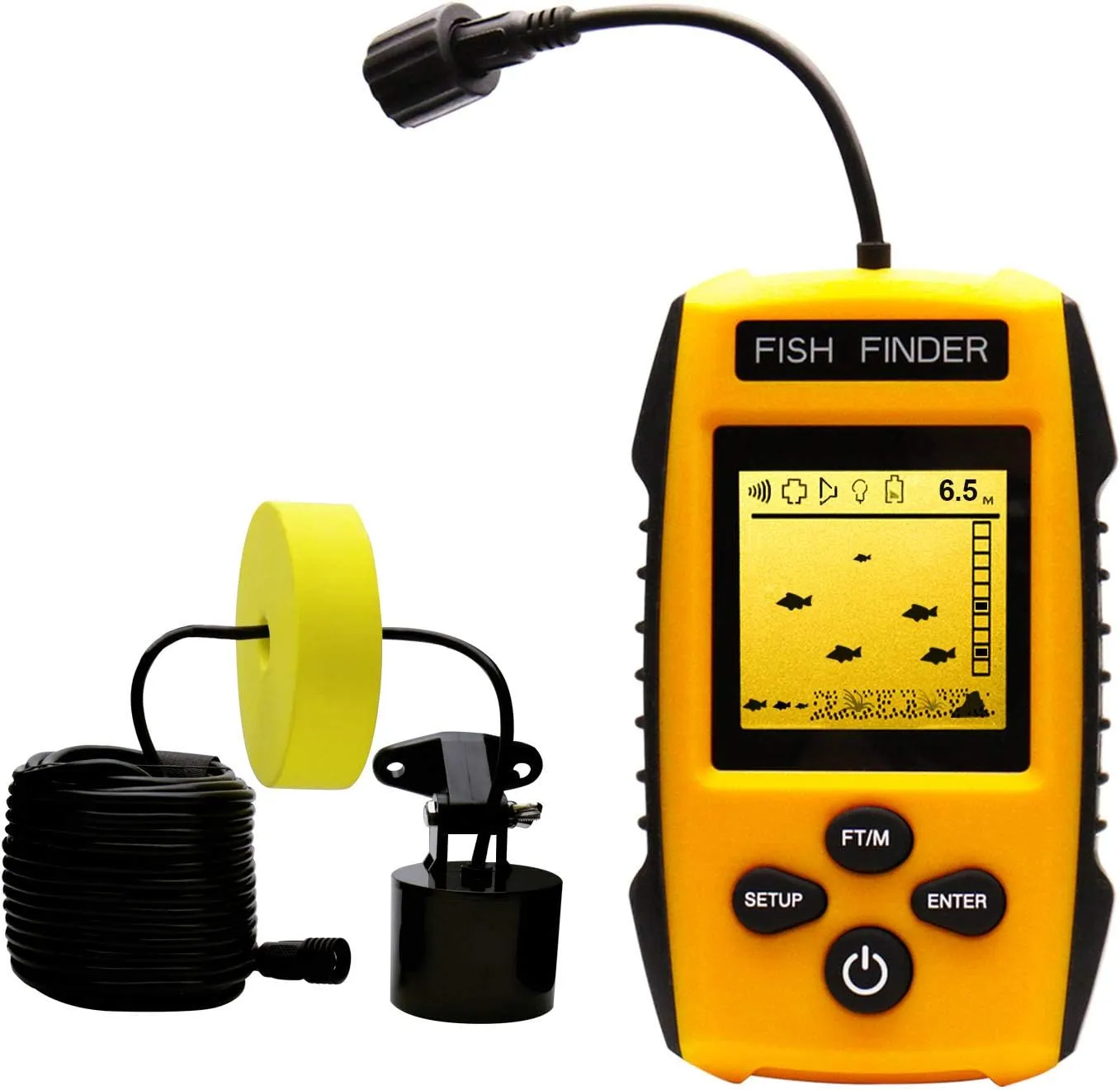

Package Included :
1. Fish Finder Display
2. Sonar Sensor (Transducer) with 25ft cable
3. Removable Transducer Float with Rubber Stopper
4.Transducer Side-Scan Adapter
5. Stainless Bolt and Wing Nut
6.Neck Strap
7.Operation Manual

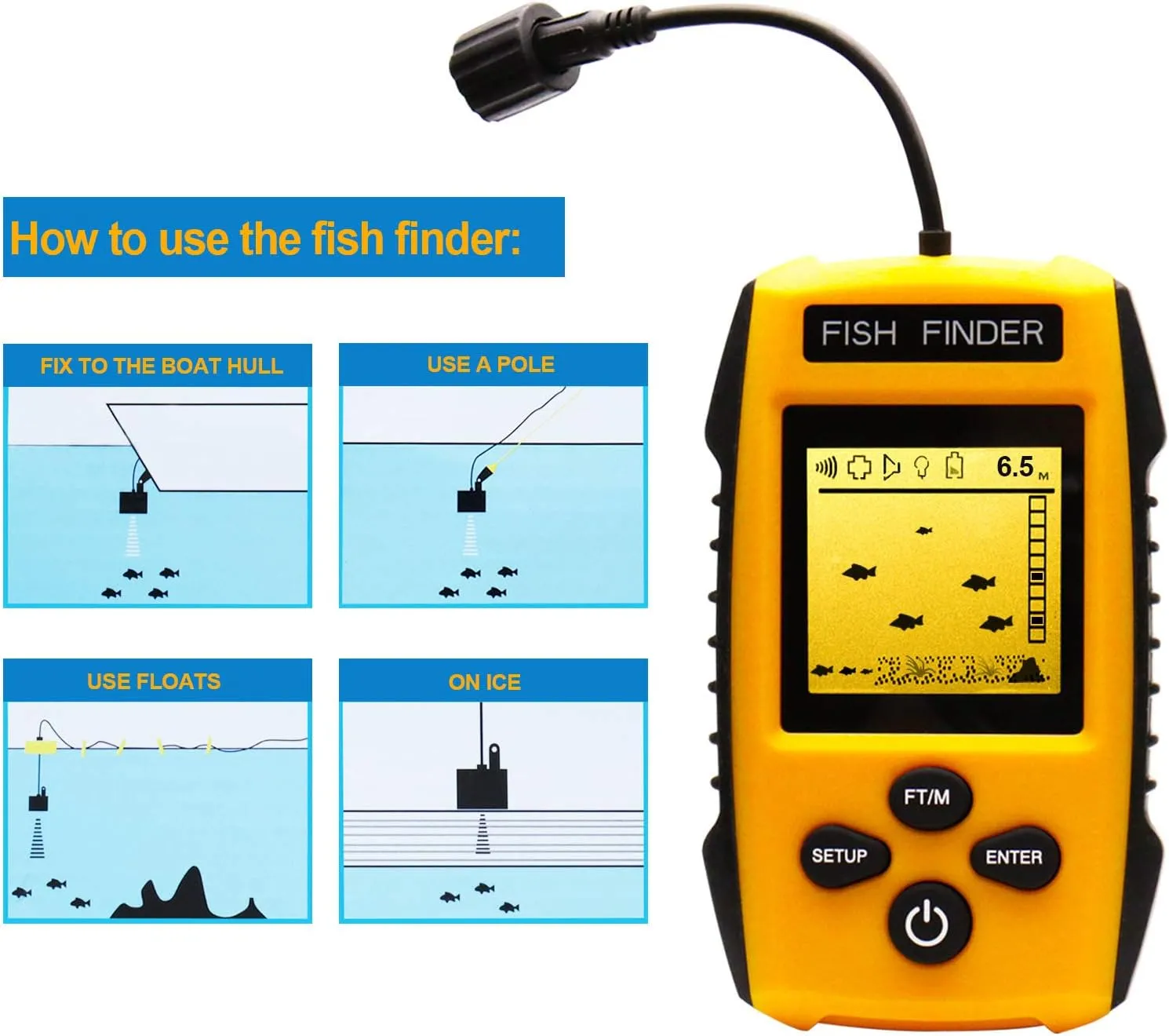

How to use the Sonar Sensor:
